Scalable methods for solving games in Adversarial Machine Learning

class: center, middle, inverse, title-slide

.title[
# Scalable methods for solving games in Adversarial Machine Learning
]
.author[
### Roi Naveiro
]
.date[
### EURO 2022
]

---

# Adversarial Machine Learning

* Study and guarantee **robustness** of ML-based decisions wrt adversarial data manipulation.

* Conflict adversary - learning system modeled as a **game**.

* Classical Decision Makers, Humans: **discrete** and **low dimensional** decision spaces.

* New Decision Makers, Algorithms: **continuous** and **high dimensional** decision spaces.

**Scalable gradient-based methods for solving sequential games in the new paradigm**

---

# Motivation - Adversarial Regression

* `\(R_J\)` and `\(R_D\)` are two competing wine brands.

* `\(R_D\)` has a system to automatically measure wine quality training a regression over some quality indicators. (Response value: wine quality, Covariates: quality indicators).

* `\(R_J\)`, aware of the actual superiority of its competitor's wines, decides to **hack** `\(R_D\)`'s system by manipulating the value of several quality indicators **at operation time**, to artificially decrease `\(R_D\)`'s quality rates.
<center>
![:scale 40%](./img/logo.png)

</center>

---

# Motivation - Adversarial Regression

* `\(R_D\)` is **aware** of the possibility of being hacked and decides to train its regression in an **adversarial robust** manner.

* `\(R_D\)` models this **conflict** as a game between a *learner* `\((R_D)\)` and a *data generator* `\((R_J)\)`. (Brückner and Scheffer, 2011).

* The *data generator* tries to fool the learner **modifying input data at application time**, inducing a change between the data distribution at training `\([p(x,y)]\)` and test `\([\bar{p}(x,y)]\)` times.

---

# The Learner Problem

* Given a feature vector `\(x \in \mathbb{R}^p\)` and target `\(y \in \mathbb{R}\)`, the learner's decision is to choose the weight vector of a linear model `\(f_w(x) = x^\top w\)`, minimizing **theoretical costs at application time**

`\begin{eqnarray*}
\theta_l (w, \bar{p}, c_l) = \int c_l(x,y) (f_w(x) - y)^2 \mathop{}\! \mathrm{d} \bar{p}(x,y),
\end{eqnarray*}`

* To do so, the learner has a training matrix `\(X \in \mathbb{R}^{n\times p}\)` and a vector of target values `\(y\in \mathbb{R}^n\)` (a sample from distribution `\(p(x,y)\)` at training time).

---

# The Data Generator Problem

* The data generator aims at **changing features of test instances** to induce a transformation from `\(p(x,y)\)` to `\(\bar{p}(x,y)\)`.

* `\(z(x,y)\)` is the data generator's target value for instance `\(x\)` with real value `\(y\)`

* The data generator aims at **choosing the data transformation** that minimizes the theoretical costs given by

`\begin{eqnarray*}
\theta_d (w, \bar{p}, c_d) = \int c_d(x,y) (f_w(x) - z(x,y))^2 \mathop{}\! \mathrm{d} \bar{p}(x,y) + \Omega_d(p,\bar{p})
\end{eqnarray*}`

---

# Regularized Empirical Costs

* Theoretical costs defined above depend on the unknown distributions `\(p\)` and `\(\bar{p}\)`.

* We focus on their regularized empirical counterparts, given by

`\begin{eqnarray*}
\widehat{\theta}_l(w, \bar{X}, c_l) &=& \sum_{i=1}^n c_{l,i} (f_w(\bar{x}_i) - y_i)^2 + \Omega_l(f_w),\\
\widehat{\theta}_d(w, \bar{X}, c_d) &=& \sum_{i=1}^n c_{d,i} (f_w(\bar{x}_i) - z_i)^2 + \Omega_d(X, \bar{X}).
\end{eqnarray*}`

---

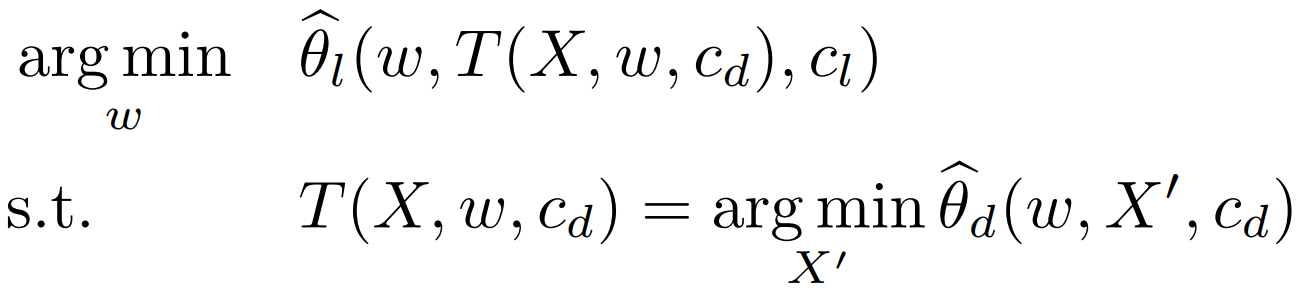

# Resulting Stackelberg Game

* We assume the learner acts first, choosing a weight vector `\(w\)`. Then the data generator, after observing `\(w\)`, chooses his optimal data transformation.

<center>
![:scale 80%](./img/ar4.png)
</center>

---

# The general problem

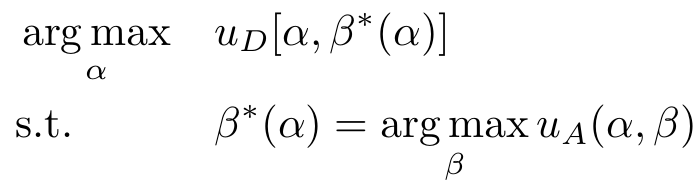

Defender (D) makes decision `\(\alpha \in \mathbb{R}^n\)`. Attacker (A), after observing `\(\alpha\)`, makes decision `\(\beta \in \mathbb{R}^m\)`


<center>
![:scale 70%](./img/eq.png)
</center>
--

* In AML, `\(\alpha\)` and `\(\beta\)` usually **high dimensional** and **continuous**.
---

# Gradient Methods

* Forget about analytical solutions!

* **Gradient methods** require computing  `\(\mathop{}\! \mathrm{d}_\alpha u_D\)` (and moving `\(\alpha\)` in the direction of increasing gradient...)

<center>
![:scale 70%](./img/eq2.png)
</center>

* Inverting the Hessian has cubic complexity!

* We need a different strategy...
---

# Backward Solution

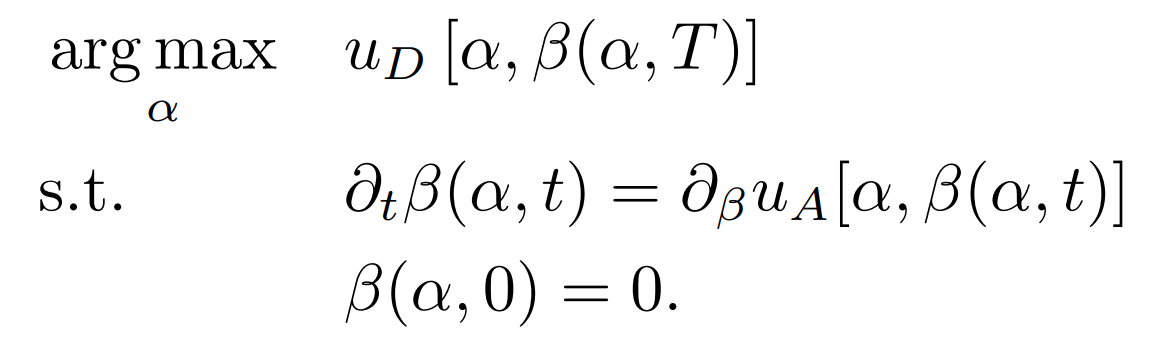

* Under **certain conditions** (Bottou, 1998), we can approximate our problem by


<center>
![:scale 70%](./img/eq3.png)
</center>

* Where `\(T \gg 1\)`.

* `\(\lim_{t \rightarrow \infty} \beta(\alpha, t) = \beta^*(\alpha)\)`.

* Let's try to solve this problem instead.
---
# Backward Solution

* It can be proved that (Naveiro and Ríos, 2019)

<center>
![:scale 80%](./img/eq4.png)
</center>

* Provided that `\(\lambda\)` satisfies the **adjoint equation**

<center>
![:scale 50%](./img/adeq.png)
</center>

* With initial conditions `\(\lambda(T) = - \partial_\beta u_D(\alpha, \beta)\)`.

---

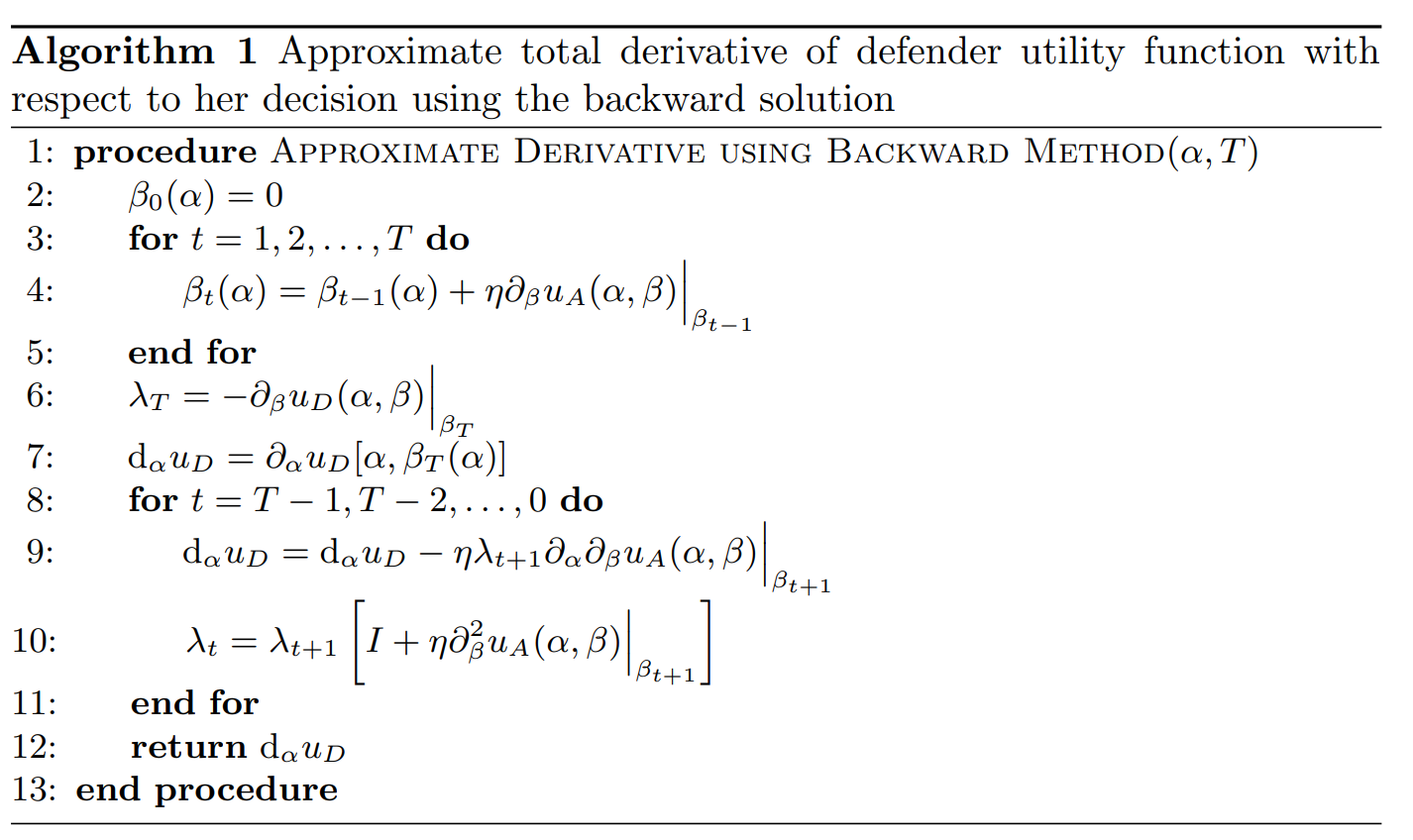

# Backward Solution

<center>
![:scale 100%](./img/bwd.png)
</center>
---
# Backward Solution - Complexity Analysis

## Time complexity

* If `\(\tau (n,m)\)` is the time required to evaluate `\(u_D(\alpha, \beta)\)` and `\(u_A(\alpha, \beta)\)`, computing their derivatives requires time `\(\mathcal{O}(\tau (n,m))\)`.

* First loop `\(\mathcal{O}(T \tau (n,m))\)`.

* Second loop needs computing Hessian Vector Products, by basic results of AD, they have same complexity as function evaluations!

* Thus, overall time complexity is `\(\mathcal{O}(T\tau (n,m))\)`.

## Space complexity

* We need to store `\(\beta_t(\alpha)\)` for all `\(t\)`.

* `\(\sigma(n,m)\)` is the space requirement for storing each `\(\beta_t(\alpha)\)`.

* Overall space complexity `\(\mathcal{O}(T \sigma(n,m))\)`.

---

# Forward Solution

* Under **certain conditions**, we can approximate our problem by


<center>
![:scale 70%](./img/fwd.png)
</center>

* Again, `\(T \gg 1\)`.

* `\(\lim_{t \rightarrow \infty} \beta_t(\alpha) = \beta^*(\alpha)\)`.

---

# Forward Solution

* Using the chain rule

<center>
![:scale 100%](./img/chr1.png)
</center>

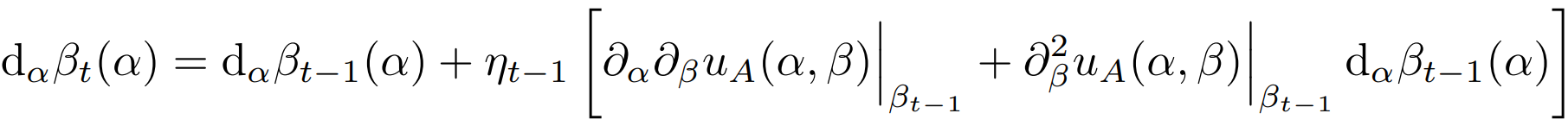

* To obtain `\(\mathop{}\! \mathrm{d}_\alpha \beta_T(\alpha)\)` we can sequentially compute

<center>
![:scale 100%](./img/chr2.png)
</center>

* This induces a dynamical system in `\(\mathop{}\! \mathrm{d}_\alpha \beta_t(\alpha)\)` that can be iterated in parallel to the dynamical system in `\(\beta_t(\alpha)\)`!

---

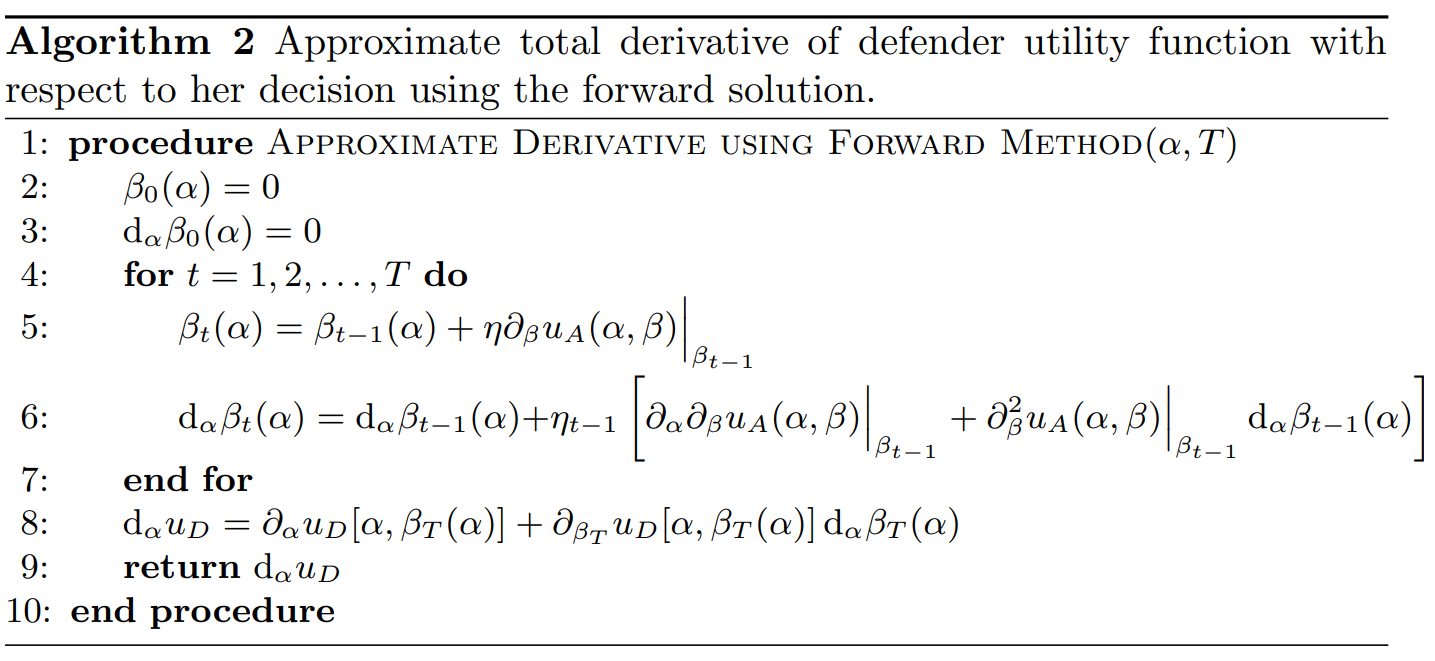

# Forward Solution

<center>
![:scale 100%](./img/fwd_algo.png)
</center>

---

# Forward Solution - Complexity Analysis

## Time complexity

* Computing `\(\partial^2_\beta u_A(\alpha, \beta)\)` requires time `\(\mathcal{O}(m \tau(m,n))\)` as it requires computing `\(m\)` Hessian vector products.

* Computing `\(\partial_\alpha \partial_{\beta} u_A(\alpha, \beta)\)` requires computing `\(n\)` Hessian vector products and thus time `\(\mathcal{O}(n \tau(m,n))\)`.

* If we compute the derivative in the other way, first we derive with respect to `\(\beta\)` and then with respect to `\(\alpha\)`, the time complexity is `\(\mathcal{O}(m \tau(m,n))\)`.

* Thus, computing `\(\partial_\alpha \partial_{\beta} u_A(\alpha, \beta)\)` requires `\(\mathcal{O}(\min(n,m) \tau(m,n))\)`.

* Overall, `\(\mathcal{O}(\max[\min(n,m), m]T\tau(m,n))=\mathcal{O}(mT \tau(m,n))\)`.

## Space complexity

* The values `\(\beta_t(\alpha)\)` are overwritten at each iteration.

* Overall space complexity is `\(\mathcal{O}( \sigma(m,n))\)`.

---

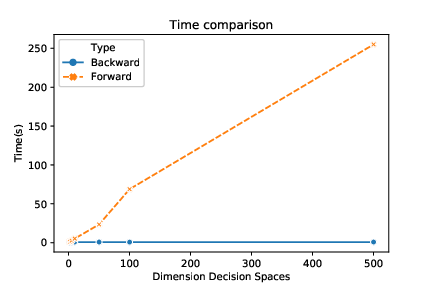

# Conceptual Example

* Attacker's utility is `\(u_A(\alpha, \beta) = -\sum_{i=1}^n 3(\beta_i - \alpha_i)^2\)` and the defender's one is `\(u_D(\alpha, \beta) = -\sum_{i=1}^n (7 \alpha_i + \beta_i^2)\)`.

* `\(\mathcal{O}(T \tau(m,n))\)` vs `\(\mathcal{O}(mT \tau(m,n))\)`.
<center>
![:scale 80%](./img/time_comp.png)
</center>

---

# Application - Adversarial Regression

* We compare ridge regression versus *adversarial robust regression* in the wine problem.

* For ridge regression, we compute the weights in the usual way, and test them in data attacked using those weights.

* For *adversarial robust regression* we compute the weights solving

<center>
![:scale 80%](./img/ar4.png)
</center>
and test them in data attacked using those weights.

* Note the dimension of the attacker's decision space is huge! He needs to modify `\(k=3263\)` data points each with `\(n=11\)` components!

---

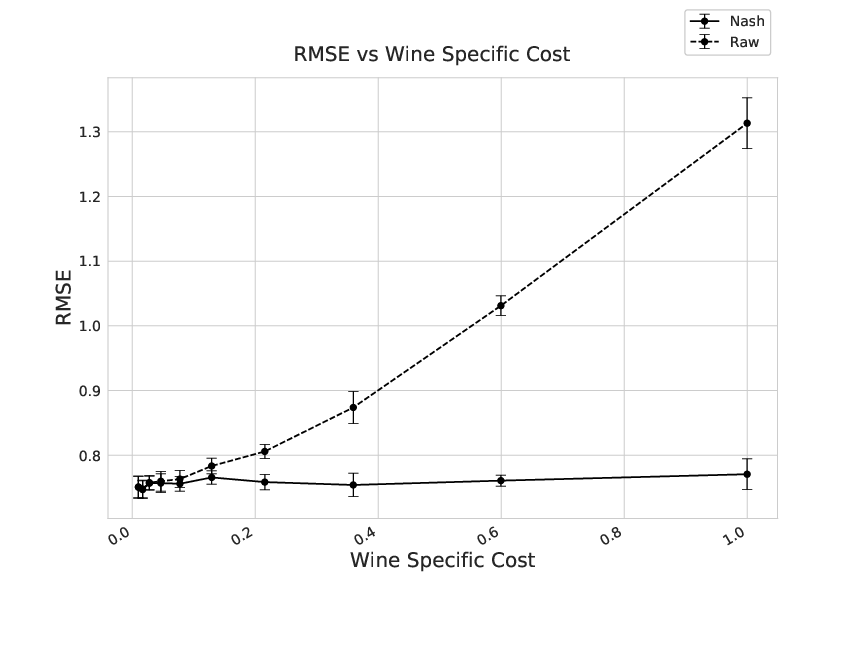

# Adversarial Regression

<center>
![:scale 80%](./img/rmse_vs_cw1.png)
</center>

---

# Conclusions and future work

* New algorithmic method able to solve **huge Stackelberg Games** (dimension of decision sets of the order of `\(10^4\)`).

* Could be implemented in any **Automatic Differentiation** library (Pytorch, tensorflow...).

* Novel derivation of the backward solution formulating the Stackelberg game as a PDE-constrained optimization problem.

* Application to games with uncertain outcomes.

* Application to Bayesian Stackelberg Games and ARA.

* Several attackers?

---
